Docker Image Template

This template builds a simple Docker image, containing Python, the Python package FastAPI for defining our api endpoints and the Uvicorn webserver. We place the files default.nix and main.py into a new folder together and run nix-build to create the Docker image. The resulting docker image can then be found in the result symlink that is creating during building.

# default.nix
{
  system ? builtins.currentSystem,
  nixpkgs ? (fetchTarball
    "https://github.com/NixOS/nixpkgs/archive/057f9aecfb71c4437d2b27d3323df7f93c010b7e.tar.gz"),
  isDev ? false
}:

let

pkgs = import nixpkgs {
  inherit system;
  config = {};
  overlays = [];
};

isNix = path : let
  file = baseNameOf path;
  suffixMatch = builtins.match "^.*(\\.nix)$" file;
in
  suffixMatch != null;

pathsToFilter = map builtins.toString [
  ./result # a previous nix-build derivation result
];

toFilter = path : type : !(
  isNix path ||
  builtins.any (x : x == builtins.toString path) pathsToFilter
);

# Pack the source code into a derivation. This is then
# put into the /app directory in the docker image.
app = pkgs.stdenv.mkDerivation rec {
  name = "api-code";
  src = builtins.path {
    name = "${name}";
    # He we take all source files in the currenty directory
    # that aren't listed in pathsToFilter or end in .nix.
    path = builtins.filterSource toFilter ./.;
  };
  buildPhase = "";
  # The source files are put into the a folder called `app`
  installPhase = "mkdir -p $out/app && cp -rT $src $out/app";
};

# The python packages and interpreter required to run
# our application
python = pkgs.python311.withPackages (ps: [
  ps.fastapi
  ps.uvicorn
]);

webserverPort = "5000";

in

pkgs.dockerTools.buildImage {
  name = "simple-python-api";
  tag = "latest";

  copyToRoot = pkgs.buildEnv {
    name = "image-root";

    paths = [
      app
      python
    ] ++ (
      # Just for the case we want to to run bash
      # within the docker container
      if isDev then [
        pkgs.bashInteractive
        pkgs.coreutils
      ] else [ ]
    );

    # From each derivation listed in paths, merge all items
    # in a top-level app folder into /app and all in a top-
    # level bin folder into /bin
    pathsToLink = [ "/app" "/bin" ];
  };

  runAsRoot = ''
    mkdir -p /app
  '';

  config = {
    # It is important arguments are separated
    Cmd = [ "uvicorn" "main:app" ];

    # Set environment variables
    Env = [
      "UVICORN_HOST=0.0.0.0"
      "UVICORN_PORT=${webserverPort}"
    ];

    # This is more for documentation purposes.
    # Still need to add -p during docker run.
    ExposedPorts = {
      "${webserverPort}/tcp" = {};
    };

    # Directory that Cmd starts in.
    WorkingDir = "/app";

    Volumes = {
      "/app" = {};
    };
  };
}

We could have chosen a directory other than /app by changing each place it occurs in the nix file above.

Our simple API just returns "Nix is cool!" at its root path.

# main.py
from fastapi import FastAPI

app = FastAPI()

@app.get("/")
async def root():
    return {"message": "Nix is cool!"}

We build and load the docker image in order to start it.

$> nix-build
$> docker load < result
12bf1bf86c45: Loading layer [==================================================>]  266.7MB/266.7MB
Loaded image: simple-python-api:latest

We then start the image, ensuring we publish the webserver port.

$> docker run -p 5000:5000 --rm simple-python-api
INFO:     Started server process [1]
INFO:     Waiting for application startup.
INFO:     Application startup complete.
INFO:     Uvicorn running on http://0.0.0.0:5000 (Press CTRL+C to quit)

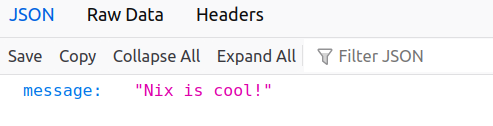

Opening http://localhost:5000 we see the result of the api call.

This looks something like:

Or we can use curl:

$> curl localhost:5000
{"message":"Nix is cool!"}

Debugging

We can instead build the image with bash, enabling us to access the machine directly. This includes the bashInteractive and coreutils packages. The image size is now slightly larger than before.

$> nix-build -E 'with (import <nixpkgs>{}); callPackage ./default.nix { isDev = true; }'
$> docker load < result
b15bfaf0bce1: Loading layer [==================================================>]  276.6MB/276.6MB
Loaded image: simple-python-api:latest

Then we can jump into the machine and see what is in our /app directory, and what was copied from the nix store into the /nix directoy.

$> docker run -it --rm simple-python-api bash
bash-5.2# ls -lsh
total 1.0K
1.0K lrwxrwxrwx 1 0 0 64 Jan  1  1980 main.py -> /nix/store/gb7q1c8326pp8wdyidz823q53fhsny8z-api-code/app/main.py
bash-5.2# ls -lsh /app
total 1.0K
1.0K lrwxrwxrwx 1 0 0 64 Jan  1  1980 main.py -> /nix/store/gb7q1c8326pp8wdyidz823q53fhsny8z-api-code/app/main.py
bash-5.2# cd /nix/store
bash-5.2# du -sh -- * | sort -h | tail -5
9.2M    ljd22jdzx6kj0hj7wsnhr71gqa4iqj88-python3.11-pygments-2.16.1
11M     5i51nfixxx3p3gshkfsjj4bzp7wajwxz-ncurses-6.4
20M     qn3ggz5sf3hkjs2c797xf7nan3amdxmp-glibc-2.38-27
22M     bnj3s9ylv33g6h9r8br8dyxvvksscxxv-python3.11-babel-2.12.1
84M     qp5zys77biz7imbk6yy85q5pdv7qk84j-python3-3.11.6

Other

There are more examples evailable in the nixpkgs repository here.

The entries within the config section of dockerTools.buildImage follow the specification here.

See also the official nix.dev page for more information.

For thoughts on reducing docker image sizes, see this page.
